General Applications
- Municipal fire departments
- Industrial fire brigades
- Attack and supply lines
- High rise packs
Construction

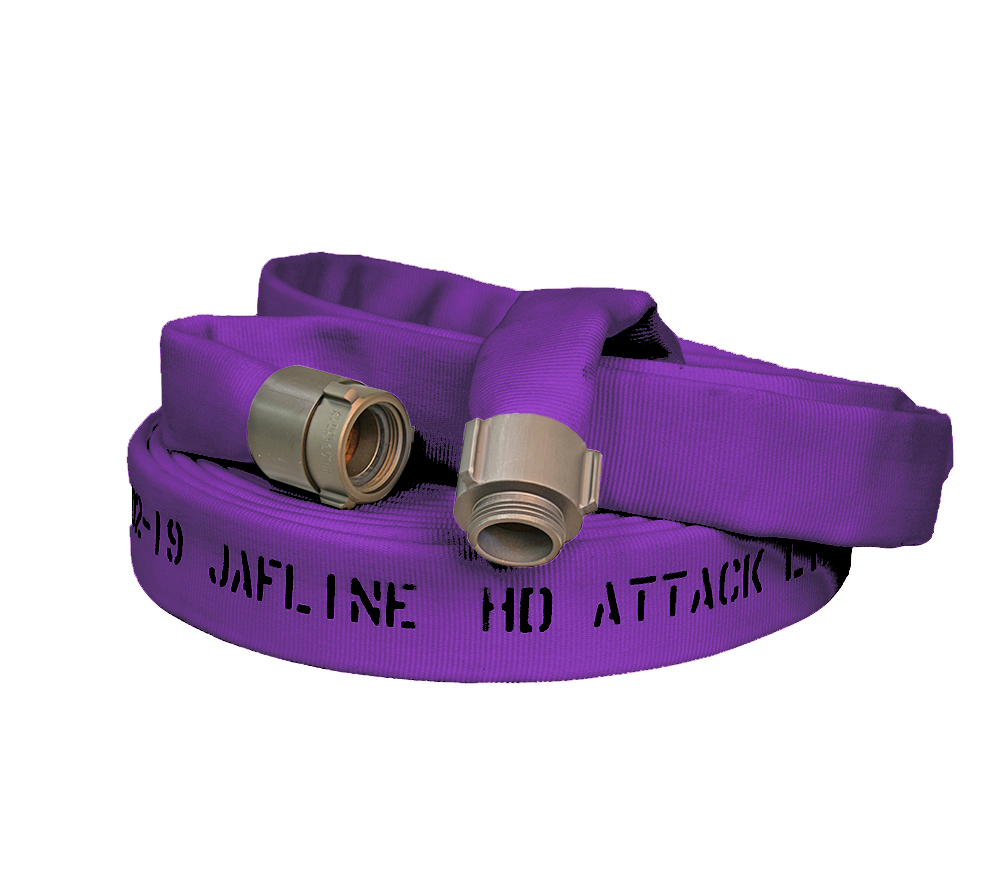

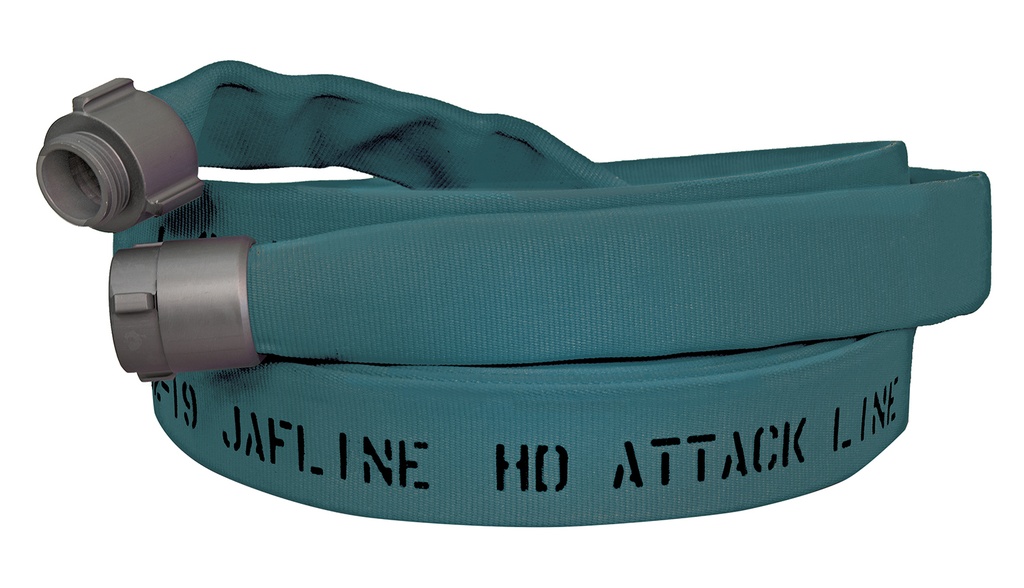

Double-Jacket Construction - Jafline® is an all polyester double-jacket hose with a polyurethane lining.
Service Temperature
All-weather performance - Retains pliability to -40 ºF (-40 ºC).
Features and Advantages
- High Burst Rating - 1,200 psi up to 3" diameter, 900 psi for larger diameters.
- Superior Performance - Very low friction loss.
- Maintenance Free - Immune to mildew and rot.
- Coated for Better Durability - All colored hose is impregnated with our tough heat-set polymer coating for the best abrasion resistance.
- Very Lightweight - This is KFP’s lightest weight American made hose. An uncoupled 1 1/2" 50' coil weighs just 14 lbs.
- Available in blue, green, black, orange, purple, red, tan, white and yellow.
- Meets or exceeds National Fire Protection Association (NFPA) 1961 Standard on Fire Hose (current edition).
- 10-year warranty.
Packaging
Available in 25', 50', and 100' lengths.
Nominal Specifications
Size | 1 1/2 in |
Color | Blue |
Coupling Size | 1 1/2 in |
Coupling Type | NST |
Service Test | 400 psi |
Proof Test | 400 psi |
Burst Test | 1200 psi |
Available Lengths | 25 ft |
Weight Uncoupled | 0.28 lbs/ft |
Specifications
Brand | Kuriyama |
Type | Fire Hose |
Material | Polyester |
Warranty | 10 y |
Industry Standards | Meets or exceeds National Fire Protection Association (NFPA) 1961 |
